DTrace-based ZFS ARC tuning on ElectroBSD

ElectroBSD is commonly used on systems with 2 GB of RAM or less, it therefore uses the ZFS ARC patch written by Karl Denninger for FreeBSD to let the Adaptive Replacement Cache (ARC) actually adapt its size when the memory is needed elsewhere.

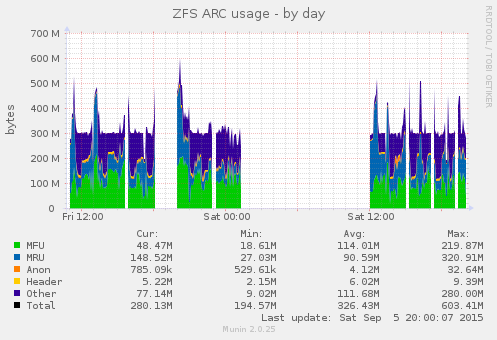

The Munin graphs below confirm that the patch has the intended effect, the system only starts paging after the ZFS ARC size is close to the minimum (in this case 300 MB):

Munin graph for system memory. Occasionally the system was swapping Munin graph for the ZFS ARC cache, mostly around 300MB. Munin graph for Swap I/O. Some paging is visible. Munin graph for ARC efficiency (average MFU efficiency 66%, max 96%)

Don't fear the (ARC) reaper

What the graphs don't show is that the monitored system still behaved unsatisfactory while under memory pressure. Running "git checkout" or "git rebase" in /usr/ports while using Emacs, Claws-Mail and Firefox with a couple of open tabs was not a pleasant experience, especially if the ARC was still cold. Applications would frequently become unresponsive for a couple of seconds, despite not having an excuse like being partly paged out or waiting for data from the (busy) disk.

Obviously unresponsive applications are annoying, thus DTrace was used to track down the cause of the issue.

Stack fishing (not shown due to incomplete notes) indicated that memory pressure resulted in a surprising amount of stacks that included reap_arc_caches(). Investigating this lead further:

fk@r500 ~ $sudo ~/scripts/arc-reap-stats.d
[...]
2015 Sep  3 16:55:36: reap_arc_caches() calls: ~5
  arc_adjust                                                        1
  reap_arc_caches                                                   5

  reap_arc_caches                                     entry                                                             5
  reap_arc_caches                                     return                                                            5
2015 Sep  3 16:55:37: reap_arc_caches() calls: ~12
  arc_adjust                                                        1
  reap_arc_caches                                                  12

  reap_arc_caches                                     entry                                                            12
  reap_arc_caches                                     return                                                           12
2015 Sep  3 16:55:42: reap_arc_caches() calls: ~59
  arc_adjust                                                       76
  reap_arc_caches                                                 119

  reap_arc_caches                                     entry                                                           119
  reap_arc_caches                                     return                                                          119
2015 Sep  3 16:55:43: reap_arc_caches() calls: ~1691
  arc_adjust                                                     1565
  reap_arc_caches                                                1724

  reap_arc_caches                                     entry                                                          1724
  reap_arc_caches                                     return                                                         1724
2015 Sep  3 16:55:44: reap_arc_caches() calls: ~475
  arc_adjust                                                      347
  reap_arc_caches                                                 394

  reap_arc_caches                                     entry                                                           394
  reap_arc_caches                                     return                                                          394
2015 Sep  3 16:55:45: reap_arc_caches() calls: ~19
  arc_adjust                                                        1
  reap_arc_caches                                                  18

  reap_arc_caches                                     entry                                                            18
  reap_arc_caches                                     return                                                           18

The effect of all this ARC reaping was high latency for ZFS operations that use arc_get_data_buf(), which would frequently block while the ARC caches were being reaped. Sampling stacks that lead to arc_get_data_buf() showed that lots of ZFS operations rely on it, including various syscalls that can directly impact application latency:

arc_get_data_buf (skip to last stack)
              zfs.ko`dnode_next_offset_level+0x227
              zfs.ko`dnode_next_offset+0x262
              zfs.ko`dmu_object_next+0x83
              zfs.ko`dmu_object_alloc+0x20e
              zfs.ko`zfs_mknode+0x38f
              zfs.ko`zfs_create+0xab2
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                1
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dnode_next_offset_level+0x227
              zfs.ko`dnode_next_offset+0x1e0
              zfs.ko`dmu_object_next+0x83
              zfs.ko`dmu_object_alloc+0x20e
              zfs.ko`zfs_mknode+0x38f
              zfs.ko`zfs_create+0xab2
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                1
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dbuf_findbp+0x2a4
              zfs.ko`dbuf_hold_impl+0x124
              zfs.ko`dbuf_hold_level+0x59
              zfs.ko`dbuf_hold+0x2c
              zfs.ko`dmu_buf_hold_array_by_dnode+0x30b
              zfs.ko`dmu_read+0x197
              zfs.ko`zfs_getpages+0x6c8
              zfs.ko`zfs_freebsd_getpages+0x2f
              kernel`VOP_GETPAGES_APV+0xa7
              kernel`vnode_pager_getpages+0xb8
              kernel`vm_pager_get_pages+0x1f
              kernel`vm_fault_hold+0xbe4
              kernel`vm_fault+0x78
              kernel`trap_pfault+0x223
              kernel`trap+0x4f0
              kernel`0xffffffff8084884a
                2
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_remove_norm+0x62
              zfs.ko`zap_remove+0x34
              zfs.ko`zfs_dropname+0x114
              zfs.ko`zfs_link_destroy+0x234
              zfs.ko`zfs_remove+0x882
              zfs.ko`zfs_freebsd_remove+0x47
              kernel`VOP_REMOVE_APV+0xa7
              kernel`kern_unlinkat+0x208
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                2
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_remove+0x1d6
              zfs.ko`zfs_freebsd_remove+0x47
              kernel`VOP_REMOVE_APV+0xa7
              kernel`kern_unlinkat+0x208
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                2
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_dirlook+0x44e
              zfs.ko`zfs_lookup+0x7ef
              zfs.ko`zfs_freebsd_lookup+0x10f
              kernel`VOP_CACHEDLOOKUP_APV+0xa1
              kernel`vfs_cache_lookup+0xd6
              kernel`VOP_LOOKUP_APV+0xa1
              kernel`lookup+0x5a5
              kernel`namei+0x584
              kernel`kern_statat+0xab
              kernel`sys_lstat+0x30
                2
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_dirlook+0x44e
              zfs.ko`zfs_lookup+0x7ef
              zfs.ko`zfs_freebsd_lookup+0x10f
              kernel`VOP_CACHEDLOOKUP_APV+0xa1
              kernel`vfs_cache_lookup+0xd6
              kernel`VOP_LOOKUP_APV+0xa1
              kernel`lookup+0x5a5
              kernel`namei+0x584
              kernel`kern_unlinkat+0xa1
              kernel`amd64_syscall+0x4eb
                2
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_tx_check_ioerr+0x134
              zfs.ko`dmu_tx_hold_zap+0xef
              zfs.ko`zfs_remove+0x498
              zfs.ko`zfs_freebsd_remove+0x47
              kernel`VOP_REMOVE_APV+0xa7
              kernel`kern_unlinkat+0x208
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                2
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dbuf_findbp+0x2a4
              zfs.ko`dbuf_hold_impl+0x124
              zfs.ko`dbuf_hold_level+0x59
              zfs.ko`dbuf_hold+0x2c
              zfs.ko`dnode_hold_impl+0x396
              zfs.ko`dnode_hold+0x3a
              zfs.ko`dmu_tx_hold_object_impl+0x60
              zfs.ko`dmu_tx_hold_zap+0x44
              zfs.ko`dmu_tx_hold_sa_create+0xab
              zfs.ko`zfs_create+0x8b3
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                2
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dbuf_findbp+0x2a4
              zfs.ko`dbuf_hold_impl+0x124
              zfs.ko`dbuf_hold_level+0x59
              zfs.ko`dbuf_hold+0x2c
              zfs.ko`dmu_buf_hold_noread+0x9f
              zfs.ko`dmu_buf_hold+0x63
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_cursor_retrieve+0xf5
              zfs.ko`zfs_readdir+0x67d
              zfs.ko`zfs_freebsd_readdir+0x41
              kernel`VOP_READDIR_APV+0xa7
              kernel`kern_getdirentries+0x210
              kernel`sys_getdirentries+0x28
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                2
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_get_leaf_byblk+0x76
              zfs.ko`zap_deref_leaf+0xbd
              zfs.ko`fzap_cursor_retrieve+0x16d
              zfs.ko`zap_cursor_retrieve+0x20d
              zfs.ko`zfs_readdir+0x67d
              zfs.ko`zfs_freebsd_readdir+0x41
              kernel`VOP_READDIR_APV+0xa7
              kernel`kern_getdirentries+0x210
              kernel`sys_getdirentries+0x28
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                2
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_get_leaf_byblk+0x76
              zfs.ko`zap_deref_leaf+0xbd
              zfs.ko`fzap_lookup+0x98
              zfs.ko`zap_lookup_norm+0x1b5
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_dirlook+0x44e
              zfs.ko`zfs_lookup+0x7ef
              zfs.ko`zfs_freebsd_lookup+0x10f
              kernel`VOP_CACHEDLOOKUP_APV+0xa1
              kernel`vfs_cache_lookup+0xd6
              kernel`VOP_LOOKUP_APV+0xa1
              kernel`lookup+0x5a5
              kernel`namei+0x584
              kernel`vn_open_cred+0xe3
                2
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_fuid_overquota+0x124
              zfs.ko`zfs_owner_overquota+0xc1
              zfs.ko`zfs_write+0x8f1
              zfs.ko`zfs_freebsd_write+0x59
              kernel`VOP_WRITE_APV+0x134
              kernel`vn_write+0x25a
              kernel`vn_io_fault+0x10a
              kernel`dofilewrite+0x89
              kernel`kern_writev+0x68
              kernel`sys_writev+0x36
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                2
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_read_impl+0x2bb
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_will_dirty+0x89
              zfs.ko`dmu_write+0x14c
              zfs.ko`space_map_write+0x56b
              zfs.ko`metaslab_sync+0x310
              zfs.ko`vdev_sync+0x119
              zfs.ko`spa_sync+0x5ac
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
                3
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_read_impl+0x2bb
              zfs.ko`dbuf_read+0x380
              zfs.ko`dbuf_sync_indirect+0xa2
              zfs.ko`dbuf_sync_list+0x103
              zfs.ko`dnode_sync+0x73f
              zfs.ko`dmu_objset_sync_dnodes+0x96
              zfs.ko`dmu_objset_sync+0x3b1
              zfs.ko`dsl_dataset_sync+0x5a
              zfs.ko`dsl_pool_sync+0x107
              zfs.ko`spa_sync+0x513
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
                3
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_read_impl+0x2bb
              zfs.ko`dbuf_read+0x380
              zfs.ko`dnode_hold_impl+0x4b7
              zfs.ko`dmu_object_alloc+0x1b7
              zfs.ko`zfs_mknode+0x38f
              zfs.ko`zfs_create+0xab2
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                3
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_count_write+0xb4
              zfs.ko`dmu_tx_hold_zap+0x29f
              zfs.ko`zfs_create+0x905
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                3
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_create+0x511
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                3
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_dirlook+0x44e
              zfs.ko`zfs_lookup+0x7ef
              zfs.ko`zfs_freebsd_lookup+0x10f
              kernel`VOP_CACHEDLOOKUP_APV+0xa1
              kernel`vfs_cache_lookup+0xd6
              kernel`VOP_LOOKUP_APV+0xa1
              kernel`lookup+0x5a5
              kernel`namei+0x584
              kernel`kern_statat+0xab
              kernel`sys_stat+0x2d
                3
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_add+0x7d
              zfs.ko`zfs_link_create+0x901
              zfs.ko`zfs_create+0xaf0
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                3
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dnode_hold_impl+0x4b7
              zfs.ko`dnode_hold+0x3a
              zfs.ko`dmu_tx_hold_object_impl+0x60
              zfs.ko`dmu_tx_hold_zap+0x44
              zfs.ko`dmu_tx_hold_sa+0x1c2
              zfs.ko`zfs_setattr+0x22ef
              zfs.ko`zfs_freebsd_setattr+0xa33
              kernel`VOP_SETATTR_APV+0xa1
              kernel`setfmode+0xb1
              kernel`kern_fchmodat+0xe6
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                3
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_get_leaf_byblk+0x76
              zfs.ko`zap_deref_leaf+0xbd
              zfs.ko`fzap_cursor_retrieve+0x16d
              zfs.ko`zap_cursor_retrieve+0x20d
              zfs.ko`dsl_prop_get_all_impl+0x9a
              zfs.ko`dsl_prop_get_all_ds+0x261
              zfs.ko`dsl_prop_get_all+0x27
              zfs.ko`zfs_ioc_objset_stats_impl+0x55
              zfs.ko`zfs_ioc_objset_stats+0x3d
              zfs.ko`zfsdev_ioctl+0xc7d
              kernel`devfs_ioctl_f+0x13b
              kernel`kern_ioctl+0x414
              kernel`sys_ioctl+0x153
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                4
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_read_impl+0x2bb
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_will_dirty+0x89
              zfs.ko`dmu_write+0x14c
              zfs.ko`space_map_write+0x56b
              zfs.ko`metaslab_sync+0x2e8
              zfs.ko`vdev_sync+0x119
              zfs.ko`spa_sync+0x5ac
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
                6
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_dirlook+0x44e
              zfs.ko`zfs_lookup+0x7ef
              zfs.ko`zfs_freebsd_lookup+0x10f
              kernel`VOP_CACHEDLOOKUP_APV+0xa1
              kernel`vfs_cache_lookup+0xd6
              kernel`VOP_LOOKUP_APV+0xa1
              kernel`lookup+0x5a5
              kernel`namei+0x584
              kernel`vn_open_cred+0xe3
              kernel`kern_openat+0x257
                6
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_add+0x7d
              zfs.ko`zap_add_int+0x7e
              zfs.ko`zfs_unlinked_add+0x44
              zfs.ko`zfs_link_destroy+0xa19
              zfs.ko`zfs_rename+0x1115
              zfs.ko`zfs_freebsd_rename+0xd9
              kernel`VOP_RENAME_APV+0xab
              kernel`kern_renameat+0x4ac
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                6
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_cursor_retrieve+0xf5
              zfs.ko`dsl_prop_get_all_impl+0x9a
              zfs.ko`dsl_prop_get_all_ds+0x261
              zfs.ko`dsl_prop_get_all+0x27
              zfs.ko`zfs_ioc_objset_stats_impl+0x55
              zfs.ko`zfs_ioc_objset_stats+0x3d
              zfs.ko`zfsdev_ioctl+0xc7d
              kernel`devfs_ioctl_f+0x13b
              kernel`kern_ioctl+0x414
              kernel`sys_ioctl+0x153
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                6
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_cursor_retrieve+0xf5
              zfs.ko`spa_add_feature_stats+0x143
              zfs.ko`spa_get_stats+0x1ff
              zfs.ko`zfs_ioc_pool_stats+0x51
              zfs.ko`zfsdev_ioctl+0xc7d
              kernel`devfs_ioctl_f+0x13b
              kernel`kern_ioctl+0x414
              kernel`sys_ioctl+0x153
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                6
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_cursor_retrieve+0xf5
              zfs.ko`spa_add_feature_stats+0x287
              zfs.ko`spa_get_stats+0x1ff
              zfs.ko`zfs_ioc_pool_stats+0x51
              zfs.ko`zfsdev_ioctl+0xc7d
              kernel`devfs_ioctl_f+0x13b
              kernel`kern_ioctl+0x414
              kernel`sys_ioctl+0x153
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                6
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`dsl_dir_hold+0x2aa
              zfs.ko`dsl_dataset_hold+0x3e
              zfs.ko`dmu_objset_hold+0x65
              zfs.ko`zfs_ioc_objset_stats+0x20
              zfs.ko`zfsdev_ioctl+0xc7d
              kernel`devfs_ioctl_f+0x13b
              kernel`kern_ioctl+0x414
              kernel`sys_ioctl+0x153
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                6
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_tx_check_ioerr+0x134
              zfs.ko`dmu_tx_hold_zap+0xef
              zfs.ko`zfs_rename+0xf44
              zfs.ko`zfs_freebsd_rename+0xd9
              kernel`VOP_RENAME_APV+0xab
              kernel`kern_renameat+0x4ac
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                7
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dnode_hold_impl+0x4b7
              zfs.ko`dnode_hold+0x3a
              zfs.ko`dmu_tx_hold_object_impl+0x60
              zfs.ko`dmu_tx_hold_zap+0x44
              zfs.ko`dmu_tx_hold_sa_create+0xab
              zfs.ko`zfs_create+0x8b3
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                7
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_dirlook+0x44e
              zfs.ko`zfs_lookup+0x7ef
              zfs.ko`zfs_freebsd_lookup+0x10f
              kernel`VOP_CACHEDLOOKUP_APV+0xa1
              kernel`vfs_cache_lookup+0xd6
              kernel`VOP_LOOKUP_APV+0xa1
              kernel`lookup+0x5a5
              kernel`namei+0x584
              kernel`kern_statat+0xab
              kernel`sys_stat+0x2d
              kernel`amd64_syscall+0x4eb
                9
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dnode_hold_impl+0x4b7
              zfs.ko`dmu_object_alloc+0x1b7
              zfs.ko`zfs_mknode+0x38f
              zfs.ko`zfs_create+0xab2
              zfs.ko`zfs_freebsd_create+0x8b
              kernel`VOP_CREATE_APV+0xa1
              kernel`vn_open_cred+0x288
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
                9
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_will_dirty+0x89
              zfs.ko`dmu_write+0x14c
              zfs.ko`space_map_write+0x56b
              zfs.ko`metaslab_sync+0x2e8
              zfs.ko`vdev_sync+0x119
              zfs.ko`spa_sync+0x5ac
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               11
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zfs_match_find+0x1ad
              zfs.ko`zfs_dirent_lock+0xa71
              zfs.ko`zfs_dirlook+0x44e
              zfs.ko`zfs_lookup+0x7ef
              zfs.ko`zfs_freebsd_lookup+0x10f
              kernel`VOP_CACHEDLOOKUP_APV+0xa1
              kernel`vfs_cache_lookup+0xd6
              kernel`VOP_LOOKUP_APV+0xa1
              kernel`lookup+0x5a5
              kernel`namei+0x584
              kernel`vn_open_cred+0xe3
              kernel`kern_openat+0x257
              kernel`amd64_syscall+0x4eb
               11
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_tx_check_ioerr+0x134
              zfs.ko`dmu_tx_count_write+0x23b
              zfs.ko`dmu_tx_hold_write+0x69
              zfs.ko`zfs_write+0xc79
              zfs.ko`zfs_freebsd_write+0x59
              kernel`VOP_WRITE_APV+0x134
              kernel`vn_write+0x25a
              kernel`vn_io_fault+0x10a
              kernel`dofilewrite+0x89
              kernel`kern_writev+0x68
              kernel`sys_write+0x63
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               13
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_cursor_retrieve+0xf5
              zfs.ko`zfs_readdir+0x67d
              zfs.ko`zfs_freebsd_readdir+0x41
              kernel`VOP_READDIR_APV+0xa7
              kernel`kern_getdirentries+0x210
              kernel`sys_getdirentries+0x28
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               13
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_noread+0xf5
              zfs.ko`dmu_buf_will_fill+0x21
              zfs.ko`dmu_write_uio_dnode+0x10e
              zfs.ko`dmu_write_uio_dbuf+0x6c
              zfs.ko`zfs_write+0xee7
              zfs.ko`zfs_freebsd_write+0x59
              kernel`VOP_WRITE_APV+0x134
              kernel`vn_write+0x25a
              kernel`vn_io_fault+0x10a
              kernel`dofilewrite+0x89
              kernel`kern_writev+0x68
              kernel`sys_write+0x63
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               14
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_new_size+0x80
              zfs.ko`dnode_set_blksz+0x277
              zfs.ko`dmu_object_set_blocksize+0x62
              zfs.ko`zfs_grow_blocksize+0x92
              zfs.ko`zfs_write+0xdea
              zfs.ko`zfs_freebsd_write+0x59
              kernel`VOP_WRITE_APV+0x134
              kernel`vn_write+0x25a
              kernel`vn_io_fault+0x10a
              kernel`dofilewrite+0x89
              kernel`kern_writev+0x68
              kernel`sys_writev+0x36
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               14
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_read_impl+0x2bb
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_will_dirty+0x89
              zfs.ko`dmu_write+0x14c
              zfs.ko`space_map_write+0x3c8
              zfs.ko`metaslab_condense+0x2bb
              zfs.ko`metaslab_sync+0x2c4
              zfs.ko`vdev_sync+0x119
              zfs.ko`spa_sync+0x5ac
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               17
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_add+0x7d
              zfs.ko`zap_add_int+0x7e
              zfs.ko`zfs_unlinked_add+0x44
              zfs.ko`zfs_remove+0xb06
              zfs.ko`zfs_freebsd_remove+0x47
              kernel`VOP_REMOVE_APV+0xa7
              kernel`kern_unlinkat+0x208
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               20
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_tx_check_ioerr+0x134
              zfs.ko`dmu_tx_hold_zap+0xef
              zfs.ko`zfs_remove+0x73e
              zfs.ko`zfs_freebsd_remove+0x47
              kernel`VOP_REMOVE_APV+0xa7
              kernel`kern_unlinkat+0x208
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               20
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dbuf_findbp+0x2a4
              zfs.ko`dbuf_hold_impl+0x124
              zfs.ko`dbuf_hold_level+0x59
              zfs.ko`dbuf_hold+0x2c
              zfs.ko`dmu_buf_hold_array_by_dnode+0x30b
              zfs.ko`dmu_buf_hold_array+0x96
              zfs.ko`dmu_write+0x69
              zfs.ko`space_map_write+0x56b
              zfs.ko`metaslab_sync+0x310
              zfs.ko`vdev_sync+0x119
              zfs.ko`spa_sync+0x5ac
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               20
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_will_dirty+0x89
              zfs.ko`dmu_write+0x14c
              zfs.ko`space_map_write+0x56b
              zfs.ko`metaslab_sync+0x310
              zfs.ko`vdev_sync+0x119
              zfs.ko`spa_sync+0x5ac
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               20
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold_array_by_dnode+0x432
              zfs.ko`dmu_read_uio_dnode+0x5d
              zfs.ko`dmu_read_uio_dbuf+0x64
              zfs.ko`zfs_read+0x473
              zfs.ko`zfs_freebsd_read+0x59
              kernel`VOP_READ_APV+0xa1
              kernel`vn_read+0x16c
              kernel`vn_io_fault+0x10a
              kernel`dofileread+0x95
              kernel`kern_readv+0x68
              kernel`sys_read+0x63
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               20
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dbuf_findbp+0x2a4
              zfs.ko`dbuf_hold_impl+0x124
              zfs.ko`dbuf_hold_level+0x59
              zfs.ko`dbuf_hold+0x2c
              zfs.ko`dmu_buf_hold_array_by_dnode+0x30b
              zfs.ko`dmu_read+0x197
              zfs.ko`zfs_getpages+0x6c8
              zfs.ko`zfs_freebsd_getpages+0x2f
              kernel`VOP_GETPAGES_APV+0xa7
              kernel`vnode_pager_getpages+0xb8
              kernel`vm_pager_get_pages+0x1f
              kernel`vm_fault_hold+0xbe4
              kernel`vm_fault+0x78
              kernel`trap_pfault+0x223
              kernel`trap+0x4f0
              kernel`0xffffffff8084884a
               32
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_update+0x80
              zfs.ko`zap_increment+0x13f
              zfs.ko`zap_increment_int+0x71
              zfs.ko`do_userquota_update+0x99
              zfs.ko`dmu_objset_do_userquota_updates+0x1b4
              zfs.ko`dsl_pool_sync+0x1c1
              zfs.ko`spa_sync+0x513
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               43
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zap_increment+0x90
              zfs.ko`zap_increment_int+0x71
              zfs.ko`do_userquota_update+0x99
              zfs.ko`dmu_objset_do_userquota_updates+0x1b4
              zfs.ko`dsl_pool_sync+0x1c1
              zfs.ko`spa_sync+0x513
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               43
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_update+0x80
              zfs.ko`zap_increment+0x13f
              zfs.ko`zap_increment_int+0x71
              zfs.ko`do_userquota_update+0x111
              zfs.ko`dmu_objset_do_userquota_updates+0x1b4
              zfs.ko`dsl_pool_sync+0x1c1
              zfs.ko`spa_sync+0x513
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               53
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_lookup_norm+0xa9
              zfs.ko`zap_lookup+0x6d
              zfs.ko`zap_increment+0x90
              zfs.ko`zap_increment_int+0x71
              zfs.ko`do_userquota_update+0x111
              zfs.ko`dmu_objset_do_userquota_updates+0x1b4
              zfs.ko`dsl_pool_sync+0x1c1
              zfs.ko`spa_sync+0x513
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               53
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_sync_leaf+0x3d9
              zfs.ko`dbuf_sync_list+0x115
              zfs.ko`dbuf_sync_indirect+0x1c0
              zfs.ko`dbuf_sync_list+0x103
              zfs.ko`dnode_sync+0x73f
              zfs.ko`dmu_objset_sync_dnodes+0x96
              zfs.ko`dmu_objset_sync+0x3b1
              zfs.ko`dsl_pool_sync_mos+0x5b
              zfs.ko`dsl_pool_sync+0x4a3
              zfs.ko`spa_sync+0x513
              zfs.ko`txg_sync_thread+0x403
              kernel`fork_exit+0x9c
              kernel`0xffffffff80848d7e
               60
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_cursor_retrieve+0xf5
              zfs.ko`dsl_prop_get_all_impl+0x9a
              zfs.ko`dsl_prop_get_all_ds+0x261
              zfs.ko`dsl_prop_get_all+0x27
              zfs.ko`zfs_ioc_objset_stats_impl+0x55
              zfs.ko`zfs_ioc_objset_stats+0x3d
              zfs.ko`zfsdev_ioctl+0xc7d
              kernel`devfs_ioctl_f+0x13b
              kernel`kern_ioctl+0x414
              kernel`sys_ioctl+0x153
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
               78
  arc_get_data_buf
              zfs.ko`arc_read+0x9e4
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold_array_by_dnode+0x432
              zfs.ko`dmu_read+0x197
              zfs.ko`zfs_getpages+0x6c8
              zfs.ko`zfs_freebsd_getpages+0x2f
              kernel`VOP_GETPAGES_APV+0xa7
              kernel`vnode_pager_getpages+0xb8
              kernel`vm_pager_get_pages+0x1f
              kernel`vm_fault_hold+0xbe4
              kernel`vm_fault+0x78
              kernel`trap_pfault+0x223
              kernel`trap+0x4f0
              kernel`0xffffffff8084884a
               90
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_new_size+0x80
              zfs.ko`dnode_set_blksz+0x277
              zfs.ko`dmu_object_set_blocksize+0x62
              zfs.ko`zfs_grow_blocksize+0x92
              zfs.ko`zfs_write+0xdea
              zfs.ko`zfs_freebsd_write+0x59
              kernel`VOP_WRITE_APV+0x134
              kernel`vn_write+0x25a
              kernel`vn_io_fault+0x10a
              kernel`dofilewrite+0x89
              kernel`kern_writev+0x68
              kernel`sys_write+0x63
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
              100
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_read_impl+0x2bb
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_tx_check_ioerr+0x134
              zfs.ko`dmu_tx_count_write+0x150
              zfs.ko`dmu_tx_hold_write+0x69
              zfs.ko`zfs_write+0xc79
              zfs.ko`zfs_freebsd_write+0x59
              kernel`VOP_WRITE_APV+0x134
              kernel`vn_write+0x25a
              kernel`vn_io_fault+0x10a
              kernel`dofilewrite+0x89
              kernel`kern_writev+0x68
              kernel`sys_write+0x63
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
              456
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold_array_by_dnode+0x432
              zfs.ko`dmu_read+0x197
              zfs.ko`zfs_getpages+0x6c8
              zfs.ko`zfs_freebsd_getpages+0x2f
              kernel`VOP_GETPAGES_APV+0xa7
              kernel`vnode_pager_getpages+0xb8
              kernel`vm_pager_get_pages+0x1f
              kernel`vm_fault_hold+0xbe4
              kernel`vm_fault+0x78
              kernel`trap_pfault+0x223
              kernel`trap+0x4f0
              kernel`0xffffffff8084884a
              562
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`dbuf_read_impl+0x2bb
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_will_dirty+0x89
              zfs.ko`dmu_write_uio_dnode+0x120
              zfs.ko`dmu_write_uio_dbuf+0x6c
              zfs.ko`zfs_write+0xee7
              zfs.ko`zfs_freebsd_write+0x59
              kernel`VOP_WRITE_APV+0x134
              kernel`vn_write+0x25a
              kernel`vn_io_fault+0x10a
              kernel`dofilewrite+0x89
              kernel`kern_writev+0x68
              kernel`sys_write+0x63
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
              570
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold_array_by_dnode+0x432
              zfs.ko`dmu_read_uio_dnode+0x5d
              zfs.ko`dmu_read_uio_dbuf+0x64
              zfs.ko`zfs_read+0x473
              zfs.ko`zfs_freebsd_read+0x59
              kernel`VOP_READ_APV+0xa1
              kernel`vn_read+0x16c
              kernel`vn_io_fault+0x10a
              kernel`dofileread+0x95
              kernel`kern_readv+0x68
              kernel`sys_read+0x63
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
              846
  arc_get_data_buf
              zfs.ko`arc_buf_alloc+0x108
              zfs.ko`arc_read+0x6b3
              zfs.ko`dbuf_read_impl+0x4ca
              zfs.ko`dbuf_read+0x380
              zfs.ko`dmu_buf_hold+0x96
              zfs.ko`zap_lockdir+0x73
              zfs.ko`zap_cursor_retrieve+0xf5
              zfs.ko`zfs_readdir+0x67d
              zfs.ko`zfs_freebsd_readdir+0x41
              kernel`VOP_READDIR_APV+0xa7
              kernel`kern_getdirentries+0x210
              kernel`sys_getdirentries+0x28
              kernel`amd64_syscall+0x4eb
              kernel`0xffffffff80848b2b
              2459

The rate limiting wasn't working as expected, among other things because the autoreap variable in the reclaim thread wasn't declared static.

Unfortunately the problem wasn't completely gone after declaring the variable static and modifying reap_arc_caches() to return early if another version was already running in a different thread. DTrace showed that there still was a correlation between the runtime distribution of reap_arc_caches() and arc_get_data_buf():

fk@r500 ~ $sudo ~/scripts/fbt-time.d reap_arc_caches
[...]
2015 Sep  3 21:08:03: Runtime for reap_arc_caches() in microseconds

  Average                                                         315


           value  ------------- Distribution ------------- count
               2 |                                         0
               3 |                                         175
               4 |                                         374
               5 |                                         116
               6 |                                         160
               7 |                                         268
               8 |                                         95
               9 |                                         8
              10 |                                         32
              20 |                                         8
              30 |                                         3
              40 |                                         6
              50 |                                         3
              60 |                                         2
              70 |                                         4
              80 |                                         1
              90 |                                         0
             100 |                                         2
             200 |@@@@@@@@@@@@@@@@@@@@@@@@@                25208
             300 |@@@@@@@@@                                8808
             400 |@@                                       2243
             500 |@                                        1334
             600 |                                         377
             700 |                                         102
             800 |                                         58
             900 |                                         66
            1000 |                                         306
            2000 |                                         97
            3000 |                                         113
            4000 |                                         39
            5000 |                                         9
            6000 |                                         7
            7000 |                                         8
            8000 |                                         5
            9000 |                                         1
           10000 |                                         7
           20000 |                                         0
           30000 |                                         1
           40000 |                                         1
           50000 |                                         0
fk@r500 ~/scripts $sudo ~/scripts/fbt-time.d arc_get_data_buf
[...]
2015 Sep  3 21:08:05: Runtime for arc_get_data_buf() in microseconds

  Average                                                          31


           value  ------------- Distribution ------------- count
               1 |                                         0
               2 |@@@@@@@@@@@@@@@@@@@@@@@@@@@              366218
               3 |@@@@                                     49931
               4 |@                                        8254
               5 |                                         4618
               6 |@@                                       21227
               7 |@                                        12464
               8 |@                                        8324
               9 |@                                        7172
              10 |@@                                       26751
              20 |                                         2714
              30 |                                         1995
              40 |                                         1265
              50 |                                         456
              60 |                                         429
              70 |                                         717
              80 |                                         337
              90 |                                         262
             100 |                                         1131
             200 |@                                        12946
             300 |@                                        8669
             400 |                                         4639
             500 |                                         1719
             600 |                                         1420
             700 |                                         1203
             800 |                                         474
             900 |                                         317
            1000 |                                         1124
            2000 |                                         195
            3000 |                                         161
            4000 |                                         66
            5000 |                                         24
            6000 |                                         10
            7000 |                                         6
            8000 |                                         6
            9000 |                                         2
           10000 |                                         8
           20000 |                                         2
           30000 |                                         1
           40000 |                                         1
           50000 |                                         0

Current solution/workaround: ARC reaper moved out of the hot path

consider_reaping_arc_caches() was added as a wrapper around reap_arc_caches(). It is executed at least once per second but more often when the ARC is under memory pressure. A time-based rate limit controlled by vfs.zfs.arc_reap_delay_min prevents the ARC reaper from hogging too much system resources.

While the perfect default value probably hasn't been found yet, DTrace confirms that arc_get_data_buf()'s latency has been significantly reduced:

2015 Sep  6 17:06:07: Runtime for consider_reaping_arc_caches() in microseconds

  Average                                                         819


           value  ------------- Distribution ------------- count
             < 1 |                                         0
               1 |@@@                                      417
               2 |@@@@@                                    690
               3 |@@@@@@@                                  982
               4 |@@@@@                                    803
               5 |@@                                       339
               6 |@                                        172
               7 |@                                        135
               8 |                                         34
               9 |                                         13
              10 |                                         35
              20 |                                         1
              30 |                                         1
              40 |                                         2
              50 |                                         0
              60 |                                         0
              70 |                                         0
              80 |                                         0
              90 |                                         0
             100 |                                         0
             200 |                                         0
             300 |                                         28
             400 |                                         40
             500 |                                         19
             600 |                                         32
             700 |                                         48
             800 |                                         38
             900 |@                                        75
            1000 |@@@@@@                                   915
            2000 |@@@@@                                    762
            3000 |@                                        203
            4000 |@                                        76
            5000 |                                         32
            6000 |                                         21
            7000 |                                         7
            8000 |                                         3
            9000 |                                         1
           10000 |                                         8
           20000 |                                         0
           30000 |                                         1
           40000 |                                         0
2015 Sep  6 17:06:06: Runtime for reap_arc_caches() in microseconds

  Average                                                        1613


           value  ------------- Distribution ------------- count
             200 |                                         0
             300 |@                                        37
             400 |@                                        68
             500 |@                                        40
             600 |@@@                                      155
             700 |@@@                                      199
             800 |@@@                                      175
             900 |@@                                       133
            1000 |@@@@@@@@@@@@@@@@@@                       1013
            2000 |@@@@@                                    264
            3000 |@@                                       123
            4000 |@                                        38
            5000 |                                         27
            6000 |                                         8
            7000 |                                         5
            8000 |                                         1
            9000 |                                         1
           10000 |                                         7
           20000 |                                         0
           30000 |                                         1
           40000 |                                         0
2015 Sep  6 17:06:06: Runtime for arc_get_data_buf() in microseconds

  Average                                                           8


           value  ------------- Distribution ------------- count
               1 |                                         0
               2 |@@@@@@@@@@@@@@@@@@@@@                    458295
               3 |@@@@                                     83927
               4 |@@@                                      56729
               5 |@                                        15070
               6 |@@@@@                                    105605
               7 |@                                        28636
               8 |@                                        17055
               9 |@                                        13698
              10 |@@                                       35016
              20 |@                                        11166
              30 |@                                        10912
              40 |                                         3869
              50 |                                         2405
              60 |                                         5465
              70 |                                         3552
              80 |                                         3271
              90 |                                         1902
             100 |                                         6646
             200 |                                         334
             300 |                                         143
             400 |                                         106
             500 |                                         80
             600 |                                         88
             700 |                                         59
             800 |                                         38
             900 |                                         45
            1000 |                                         173
            2000 |                                         31
            3000 |                                         37
            4000 |                                         30
            5000 |                                         10
            6000 |                                         8
            7000 |                                         9
            8000 |                                         4
            9000 |                                         4
           10000 |                                         9
           20000 |                                         5
           30000 |                                         1
           40000 |                                         0
           50000 |                                         0
           60000 |                                         1
           70000 |                                         0
           80000 |                                         0
           90000 |                                         0
          100000 |                                         2
          200000 |                                         0

More importantly, the user experience under memory pressure has improved accordingly.

In case you are wondering: The cause of the outliers at the end has not yet been investigated and it's unknown if they also occur when DTrace isn't running.

Disclaimer

This page was made from incomplete notes created while experimenting.

I did not (yet) investigate how vanilla FreeBSD would perform under similar circumstances and you should not draw any FreeBSD-specific conclusions from this page without DTracing the workload you care about yourself.

While an unpatched FreeBSD reaps the ARC caches from a potential hot path that can impact arc_get_data_buf() through a shared lock, it does it from a single thread so there should be no collisions and a lot less lock contention than with the ZFS ARC patch mentioned above.

If you want to experiment without waiting for the ElectroBSD release, feel free to try the zfs-arc-tuning.diff (experimental) which includes the fbt-time DTrace script and should apply more or less cleanly against vanilla FreeBSD 11-CURRENT once the ZFS ARC patch from the PR is applied.
